ListView

Virtualized scrollable list with object pooling. Supports vertical/horizontal direction, multiple prefab types, and zero-GC generics via VirtualListView<T>.

Which scrolling component?

• ListView — a long 1-D feed (chat, leaderboard, inbox). Virtualized: only visible rows exist.
• GridView — a virtualized 2-D grid of uniform cells (inventory, gallery). Use when items wrap into rows and you need pooling.
• Carousel — a small, paged set you swipe through (onboarding, featured cards), not an endless feed.
• ScrollView — arbitrary content that simply overflows, with no pooling. Reach for this when the child count is small and fixed.

Inspector Setup

1. Create a container with AutoLayout.
2. AutoLayoutScrollView and ListView are added automatically by the builder. For manual setup, add both.
3. Register prefabs in the Prefabs list.
4. Set item count and bind data via code.

Field	Type	Default	Description
Direction	ListViewDirection	Vertical	Scroll axis
Gap	float	0	Gap between items
Virtualized	bool	true	Enable object pooling
Default Pool Capacity	int	10	Initial pool size per type
Overscan Count	int	2	Extra items rendered offscreen
Prefabs	List	-	Prefab registrations (typeId + prefab + capacity)

Code Usage

Building a ListView

Build it visually in the Inspector (see Inspector Setup above), or construct it from code with the Code API.

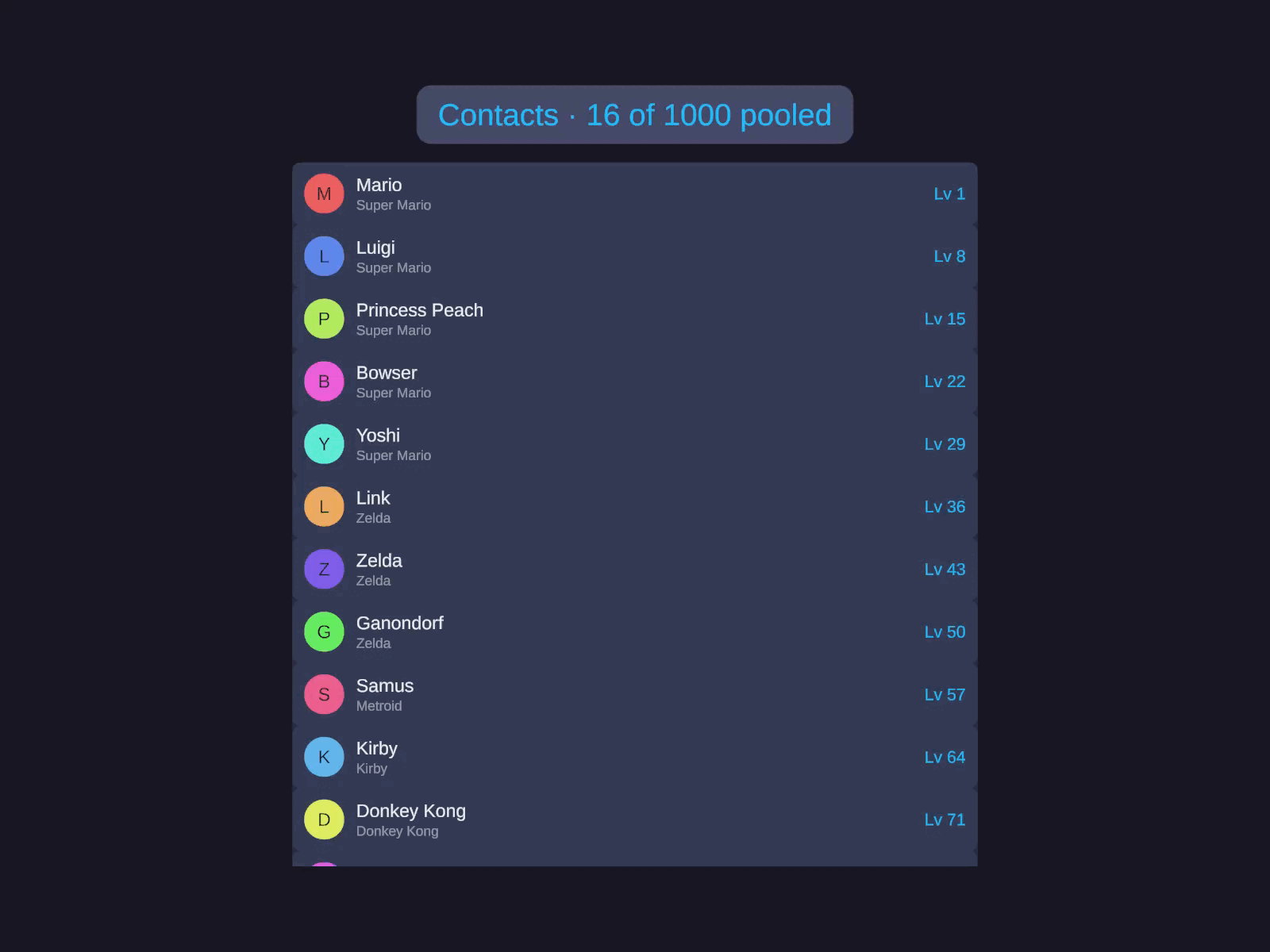

Virtualized list

Virtualized scrollable list with object pooling. Supports vertical/horizontal direction and multiple prefab types.

Inspector

Under List Layout, set the Direction (Horizontal / Vertical) and Gap. Expand Prefabs and add your cell prefab under Registered Prefabs. Tune Pooling (Default Pool Capacity, Overscan Count) if needed. Items themselves are supplied from code (see the Code tab).

Code

var lv = go.GetComponent<ListView>();
lv.Direction = ListViewDirection.Vertical;
lv.Gap = 8f;
lv.GetItemCallback = i => data[i];
lv.BindItemCallback = (go, index, data) =>
{
    go.GetComponent<MyItemView>().Bind((MyData)data);
};
lv.ItemCount = data.Count;
lv.RefreshItems();

Multi-Type (Mixed Cells)

Register multiple prefab types and route each index to a type via GetItemTypeCallback:

var lv = go.GetComponent<ListView>();
lv.RegisterPrefab(0, contentPrefab, 15);   // Type 0: content rows
lv.RegisterPrefab(1, headerPrefab, 5);     // Type 1: section headers
lv.GetItemCallback = i => flatList[i].Data;
lv.GetItemTypeCallback = i => flatList[i].IsHeader ? 1 : 0;
lv.BindItemCallback = (go, index, data) =>
{
    if (flatList[index].IsHeader)
        go.GetComponentInChildren<TMP_Text>().text = (string)data;
    else
        go.GetComponent<MyItemView>().Bind((MyData)data);
};
lv.ItemCount = flatList.Count;
lv.RefreshItems();

Quick Setup (Convenience)

m_ListView.Setup(
    prefab: itemPrefab,
    count: data.Count,
    bindItem: (go, index, data) => { /* bind */ },
    getData: i => data[i]
);

Runtime Updates

m_ListView.ItemCount = newData.Count;
m_ListView.RefreshItems();                              // Deferred refresh
m_ListView.RefreshItemsImmediate();                     // Synchronous
m_ListView.RefreshItem(5);                              // Single item
m_ListView.ScrollToItem(50, ScrollAlignment.Center);    // Scroll to item
m_ListView.InvalidateItemSize(10);                      // Recalculate item size
m_ListView.Clear();                                     // Remove all

VirtualListView<T> (Zero-GC Generic)

For struct data or when you need to avoid boxing:

public class MyScreen : MonoBehaviour
{
    private VirtualListView<PlayerData> m_List;

    void Start()
    {
        // VirtualListView<T> is added via AddComponent
        m_List = gameObject.AddComponent<VirtualListView<PlayerData>>();
        m_List.GetItemCallback = i => m_Players[i];         // No boxing
        m_List.BindItemCallback = (go, i, data) =>          // Typed data
        {
            go.GetComponent<PlayerView>().Bind(data);
        };
        m_List.ItemCount = m_Players.Count;
        m_List.RefreshItems();
    }
}

IListViewItem<T> Interface

Implement on prefab root for auto-binding without callbacks:

public class PlayerView : MonoBehaviour, IListViewItem<PlayerData>
{
    public void Bind(int index, PlayerData data)
    {
        // Bind typed data — no boxing, no casting
    }

    public void Unbind() { }
}

Methods

Method	Description
RegisterPrefab(int typeId, GameObject prefab, int capacity)	Register a prefab type
Setup(GameObject prefab, int count, Action bind, Func getData)	Quick setup
RefreshItems()	Deferred refresh
RefreshItemsImmediate()	Synchronous refresh
RefreshItem(int index)	Refresh single item
ScrollToItem(int index, ScrollAlignment alignment, bool animated)	Scroll to item
InvalidateItemSize(int index)	Recalculate item height
InvalidateItemSizesFrom(int startIndex)	Recalculate from index onward
Clear()	Remove all items

Properties

Property	Type	Description
ItemCount	int	Total item count (set to trigger refresh)
Direction	ListViewDirection	Vertical or Horizontal
Gap	float	Gap between items
OverscanCount	int	Extra items rendered offscreen
VisibleCount	int	Currently rendered items
CurrentRange	VisibleRange	Start/end indices of visible items
Virtualized	bool	Pool mode toggle
ScrollView	AutoLayoutScrollView	Internal scroll view

Callbacks

Callback	Signature	Description
GetItemCallback	Func<int, object>	Return data for index
GetItemTypeCallback	Func<int, int>	Return prefab type for index
BindItemCallback	Action<GameObject, int, object>	Bind data to item
UnbindItemCallback	Action<GameObject, int>	Cleanup on recycle

Interfaces

• IListViewItem — Implement on prefab for auto-binding.
• IListViewItem<T> — Zero-GC typed binding (use with VirtualListView<T>).
• IListViewDelegate — Full data source control (overrides callbacks).

Builder API

Method	Description
.Prefab(GameObject, int)	Register type-0 prefab
.Prefab(int, GameObject, int)	Register typed prefab
.PoolCapacity(int)	Set default pool size
.Overscan(int)	Set overscan count
.Virtualized(bool)	Enable/disable pooling
.ItemCount(int)	Set total items
.Delegate(IListViewDelegate)	Set delegate
.GetItem(Func<int, object>)	Set data callback
.GetItemType(Func<int, int>)	Set type callback
.BindItem(Action<GameObject, int, object>)	Set bind callback
.UnbindItem(Action<GameObject, int>)	Set unbind callback
.Capture(Action<ListView>)	Capture reference (e.g. .Capture(lv => m_List = lv))

Keyboard Navigation

ListView implements IMoveHandler for arrow key / gamepad navigation. Click the list to select it, then use arrow keys to move focus.

Direction	Vertical List	Horizontal List
Up / Left	Previous item	Previous item
Down / Right	Next item	Next item
Cross-axis	Not consumed (passes through)	Not consumed

// Listen for focus changes
m_ListView.OnFocusedIndexChanged += index =>
{
    Debug.Log($"Focused: {index}");
};

// Set focus programmatically
m_ListView.FocusedIndex = 5;

Property / Event	Type	Description
FocusedIndex	int	Currently focused item (-1 = none)
OnFocusedIndexChanged	Action<int>	Fired when focused index changes

Notes

• Virtualized = false instantiates all items upfront. Use for small, fixed-size lists.
• Overscan renders extra items offscreen to prevent flicker during fast scrolling.
• Pool items are marked IsVirtualized = true internally to optimize enable/disable cycles.
• For best performance with struct data, use VirtualListView<T> to avoid boxing allocations.
